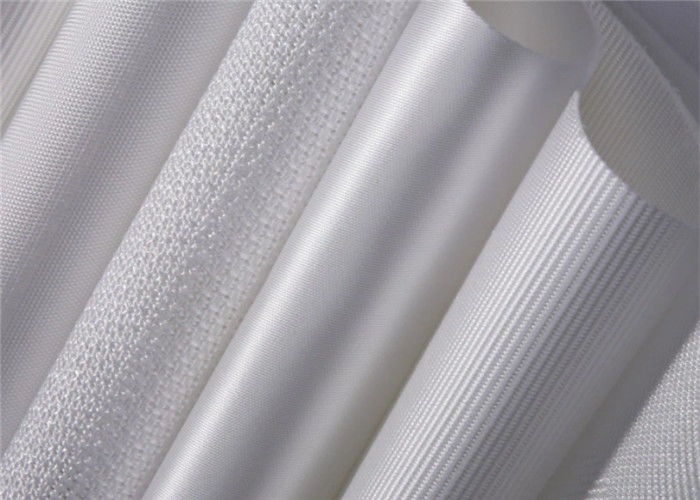

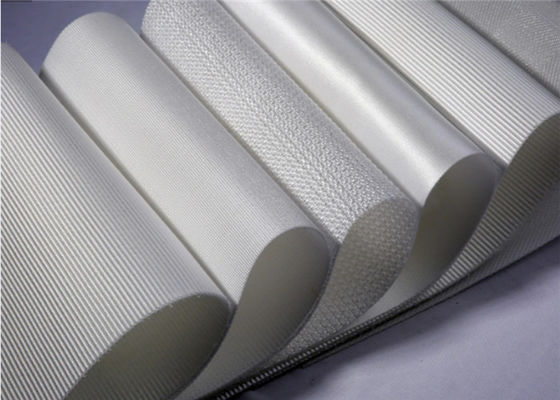

PP750A Polypropylene Woven Filter Fabric Monofilament Filter

PP750A Polypropylene Woven Filter Fabric Monofilament Filter

PP750A Polypropylene Woven Filter Fabric Monofilament Filter
PP750A Polypropylene Woven Filter Fabric Monofilament Filter PP750A Polypropylene Woven Filter Fabric Monofilament Filter

Large Image :  PP750A Polypropylene Woven Filter Fabric Monofilament Filter Get Best Price

Product Details:

Place of Origin: Shanghai
Brand Name: Weixuan
Certification: ISO,CE
Model Number: WXFF-WVF

Payment & Shipping Terms:

Minimum Order Quantity: 500kg
Price: $2.6-$2.8/kg
Packaging Details: PP woven bags or in carton boxes. Or as your requirement.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 1000KG/week
Detailed Product Description
Material: PP Thickness: 0.8mm
Usage: Liquid Filtration Type: Woven Filter
Weave: Plain
High Light:

PP750A woven filter fabric

,

PP750A polypropylene filter cloth

,

0.8mm woven filter fabric

PP750A polypropylene woven filter fabric monofilament filter cloth for water filtration





PP750A polypropylene woven filter fabric monofilament filter cloth for water filtration ,can be widely used in the precision chemical, gye chemical, sugar, pharmaceutical, alumina industryial, for the equipments of frame prss filter, belt filter, blend belt filter, disc filter, drum filter industries and so on.The filtering precision can reach less than 1 micron.





Material Fiber Polypropylene fabric
Weight(g/m2) 360
Thickness(mm) 0.8
Air permeability (L/m2/s) 35
Tensile strength(N/5×20cm) Warp ≥2100
Weft ≥1700
Density(/10cm counts/10cm)



Warp

168
Weft 131
Working temperature(°C) Continues 100
Corrosion resistant Bad
Alkali resistant Strong
Acid resistant All right
Electrification All right
Splitting and elongation Better than polyester
Return ability Beter than Polyester
Abrasion resistance Good
Heat-resisting 90°C a little contraction
Softening-resisting 140-150 °C
Melting-point 165-170 °C
Construction



Plain weave



PP750A Polypropylene Woven Filter Fabric Monofilament Filter 0

PP750A Polypropylene Woven Filter Fabric Monofilament Filter 1

PP750A Polypropylene Woven Filter Fabric Monofilament Filter 2

PP750A Polypropylene Woven Filter Fabric Monofilament Filter 3

1. How to choose material for filter bag with good price ?

Since every filter has its own characteristics and parameters, when we choose filter material for

dust collector filter bag, we have to know the following parameters:

(1) Working temperature

(2) Humidity

(3) Dust diameter

(4) Gas’ chemical properties

(5) Dust abrasiveness

(6) Filter's mechanical parameters

2.How to assure the product quality?

We will send the sample for your confirmation first, and then produce the products according to your requirement.

3.Can you provide free sample ?

Normally, our sample fee is free if its value is less than $5.

However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...

4.Generally, what is the delivery?

In normal circumstances, the products can be delivered within 1 week after your deposit.

5.Why aren't my bags lasting as long as they used to?

Usually because they are working harder. Bag’s life is limited by the amount of dust captured, not by hours they are used. Bags filtering clean working environment may last a year. A bag filtering high dust containing plant may only last a few weeks. A product can appear clean to the naked eye and still be full of particles that are too small to see.

6.How do I know when to change bags?

Monitor the inlet pressure. The pressure drop across a bag rises as the active surface area is used up. When the pressure starts to raise faster the bag is almost used up and should be changed. Every application is different, but a good rule of thumb is to change bags when you see 8-12 PSI pressure drop (the difference in pressure between the filter's inlet and outlet).

7.How many times can I clean and reuse a filter bag?

Filter bags are designed for one time use. Attempting to clean a bag will stretch the material. Some holes will get bigger and allow dust to get through. Other holes will get smaller, plug up faster, and start removing things from the product that are supposed to stay in it.

8.Do you offer volume/distributor discounts?

We do offer volume discounts, but that is based on the quantities ordered and frequency of orders. Contact us in regards to volume discounts and we will gladly give you more details.

9.What shipments are available?

Normally, we ship goods by sea,air or express. Special requirement can also be acceptable.

(1) By sea: to your nearest sea port

(2) By air: to your nearest air port

(3) By express: (UPS,DHL.FEDEX,TNT...) to your door
