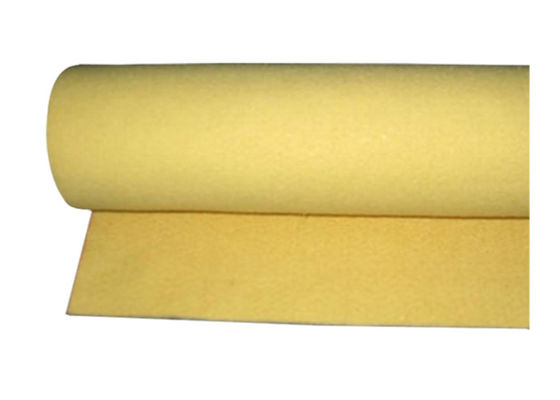

Non Woven Filter Bag FMS Needle Felt Filter Cloth For Cement Industries
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Weight: | 450-600GSM | Materials: | FMS Needle Felt |
|---|---|---|---|
| Usage: | Powder Filter | Temperature: | 240～260 |
| Size: | Customized | Airpermeability:: | 200～400 L/m2/s |
| Product Name: | FMS Filter Bag Non Woven FMS Filter Bag FMS Dust Removal Filter Bag For Cement Industries | ||
| High Light: | Weixuan FMS Needle Felt Filter Cloth,Weixuan Non Woven Filter Bag FMS,Needle Felt Filter Cloth Cement Industries |
||
FMS Filter Bag non woven FMS filter bag FMS Dust Removal Filter Bag for cement Industries
Features & Benefits
1. Highly efficient filtration level
2. Depth type filtration
3. Wide range of chemically compatible media
4. High temperature resistance
5. High flow efficiency
6. High air to cloth ratio
7. Various coatings are available
Technical Specifications
1. Material: FMS
2. Weight (g/): 800
3. Thickness (mm): 2.5
4. Air permeability (L/*s): 200-300
5. Breaking strength (N/5*20cm): Wrap: 3260,Weft: 3330
6. Elongation (%): Wrap<10,Weft <15
7. Working temperature: Peak: 260,Cont: 300
8. Finishing: PTFE dip forming
Sizes
Customized sizes are available
Configurations
1. Snap band type
2. Flange collar type
3. Rubber cord type
4. Customized
Applications
1. Pharmaceuticals
2. Steel & Power
3. Powder coating
4. Shot Blasting
5. Cement
6. Chemicals
7. Metals & Minerals
8. Paints & Pigments
model |
material |
Weight (g/Square meter) |
Thickness (mm) |
Air permeability (L/square meter*s) |
Breaking strength (N/5*20cm) | Elongation (%) | Working temperature | finishing |
||||
| wrap | weft | wrap | weft | Peak | cont | |||||||
| Fiberglass felt | Fiberglass | 800 | 2.4 | 200-300 | 1800 | 1800 | <10 | <10 | 240 | 260 | PTFE dip forming | |
| Nomex Felt | Nomex | 500 | 2.0 | 200-400 | 1300 | 1500 | <50 | <55 | 204 | 240 | Singed calendered heat set | |
| PPS felt | PPS | 500 | 1.8 | 200-300 | 1250 | 1350 | <40 | <60 | 190 | 220 | Singed calendered heat set | |
| P84 felt | P84 | 500 | 2.0 | 200-300 | 1100 | 1200 | <25 | <35 | 260 | 280 | PTFE dip forming | |
| FMS felt | FMS | 800 | 2.5 | 200-300 | 3260 | 3300 | <10 | <15 | 260 | 300 | PTFE dip forming | |
| PTFE felt | 100% PTFE | 750 | 1.1 | 150-250 | 620N/5cm | 510N/5cm | <5 | <5 | 240 | 260 | Singed heat set | |
|
Working Environment
|
Product Name
|
Weight (g/m2)
|
Thickness (mm)
|
Air permeability (m3/m2.min)
|
Temperature Resistance (°C)
|
|
|
Continues
|
Instant
|
|||||
|
Room Temperature
|
Polyester Needle Felt
|
450-700
|
1.6-2.2
|
8-18
|
130
|
150
|
|
Polypropylene Needle Felt
|
400-600
|
1.6-2.4
|
8-20
|
80
|
100
|
|
|
Acylic
Needle Punched Felt
|
500-600
|
1.8-2.2
|
8-20
|
130
|
150
|
|
|
PTFE Membrane
Needle Punched Felt
|
450-600
|
1.6-2.2
|
2-4
|
130
|
150
|
|
|
High-temperature Chemical Fiber
|
PPS Needle Punched Felt
|
400-650
|
1.4-2.2
|
8-20
|
160
|
190
|
|
P84 Needle Punched Felt
|
500-600
|
1.8-2.4
|
8-20
|
250
|
280
|
|
|
PTFE
Needle Punched Felt
|
650-800
|
0.8-1.2
|
8-20
|
240
|
260
|
|
|
Aramid (Nomix, Conex) Needle Punched Felt
|
450-550
|
1.7-2.4
|
8-20
|
204
|
240
|
|
|
High-temperature Fiberglass Compound
|
Fiberglass, PPS Compound Felt
|
900±50
|
2.2-2.8
|
22±5
|
190
|
232
|
|
Fiberglass, Aramid Compound Felt
|
900±50
|
2.2-2.8
|
22±5
|
204
|
240
|
|
|
Fiberglass, P84 Compound Felt
|
900±50
|
2.2-2.8
|
22±5
|
260
|
280
|
|
|
Fiberglass, PTFE Compound Felt
|
900±50
|
2.2-2.8
|
22±5
|
280
|
300
|
|
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before shipping
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
