Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine

Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine

Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine
Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine

Large Image :  Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine Get Best Price

Product Details:

Place of Origin: Shanghai
Brand Name: Weixuan
Certification: ISO9001:2008
Model Number: WXPB

Payment & Shipping Terms:

Minimum Order Quantity: 50sqm
Price: $9-$11
Packaging Details: 1. For Sea shipping: Wooden Boxes 2. For Air shipping: Foam with plastic roll
Delivery Time: 3-15days
Payment Terms: T/T, Western Union
Supply Ability: 3000sqmper day
Detailed Product Description
Materials: 100% Monofilament Polyester Color: White/Blue/Red/Orange/Black Etc
Function: High Temperature Resistance/Joining Or Not Arbitrarily Use: Paper Machine/Food Drying Industry
Woven Type: Spiral Width: Up To Max. 7.5m
Product Name: White Color Mono Filament Plain Weave Polyester Conveyor Belt Mesh Fabric
High Light:

Plain Weave Polyester Conveyor Belt

,

Mono Filament Polyester Conveyor Belt

,

Weixuan Spiral Polyester Conveyor Belt

White color Mono filament Plain Weave polyester conveyor Belt Mesh fabric

Mono filament polyester plain weave conveyor mesh fabric

Material 100% mono polyester wire
Weave plain weave
mesh 1-60 mesh
width 0.1-6.8m
length 1-100m/roll
Edge treatment blue glue ,or endless joint.



Specificaitons

Weaving Type Thread Diameter(mm) Density(No.s/cm) Strength (N/cm) Air Permeability(m³/m²h)
Warp Weft Warp Weft
2-shed plain weaving fabric 0.7 0.8 4.7-5.0 4.8-5.0 940 >20000
1.0 1.0 4.7-5.2 4.3-5.0 1600 >15000
0.7 0.7 8.0 7.0 ≥1600 11000
0.7 0.7 6.6-7.0 4.3-4.6 1100 >15000
0.55 0.55 7.5-8.0 8.5-9.0 850 850-6500
0.45 0.45 10.0 8.6 1600 1600
0.55 0.55 8.5-9.0 10-10.5 750 >10000
0.55 0.55 13.5 8.5 1800 6500
3-shed plain weaving fabric 0.55 0.6 10.0 9.0 1600 14000
0.9 0.9 7.8-8.0 5.0-5.5 2100 87500-8500
0.7 0.8 8.0 8.0 1600 10000
0.3 0.35 22.0 14.5 1200 13000
0.3 0.4 22.0 14.5 1200 13500

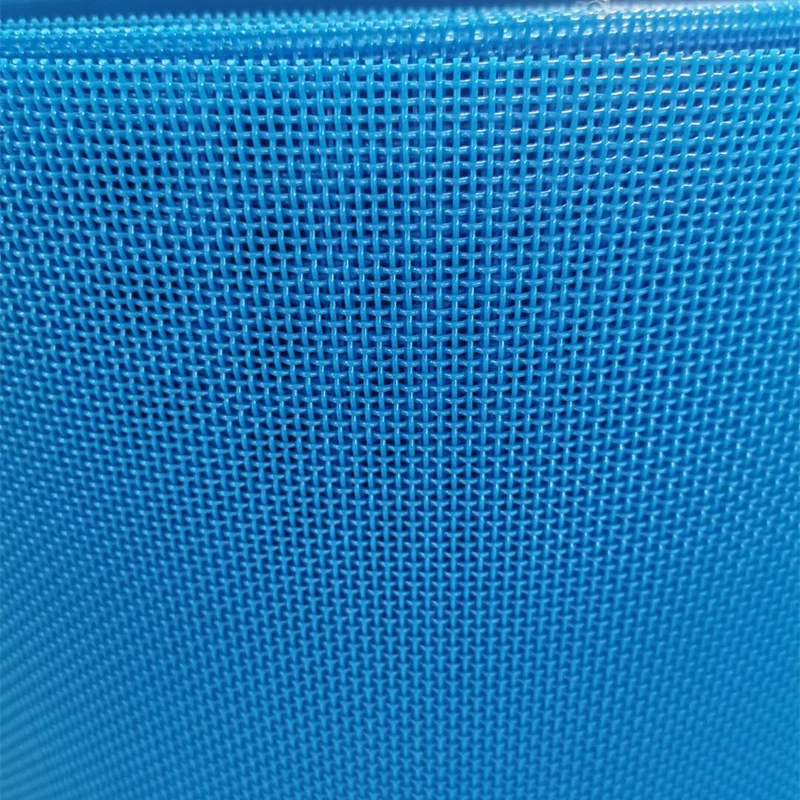

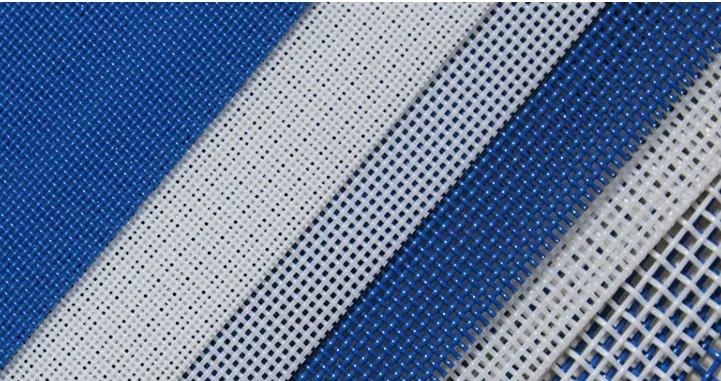

White color Mono filament  Plain Weave polyester conveyor Belt Mesh fabric



Advantage

1) High strength,standard plain weave ,uniform opening



2) Stand high working strength,durable,long work time



3) Resistance under 180 degrees



4) Waterproof



5) Shrink-Resistance

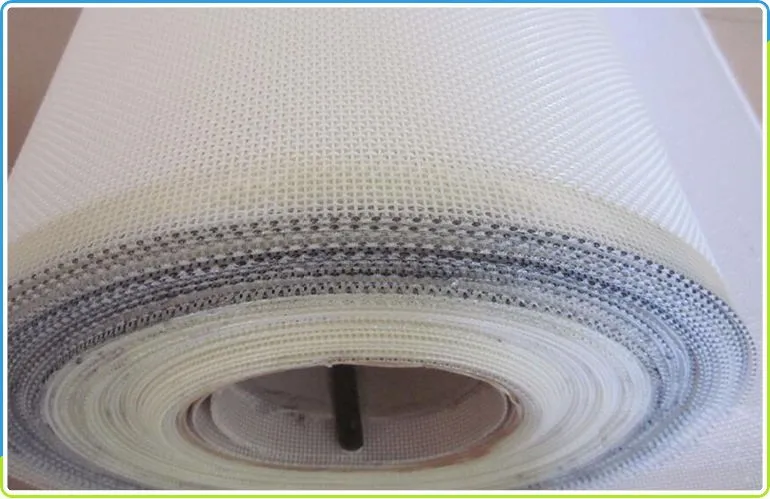

White color Mono filament  Plain Weave polyester conveyor Belt Mesh fabric

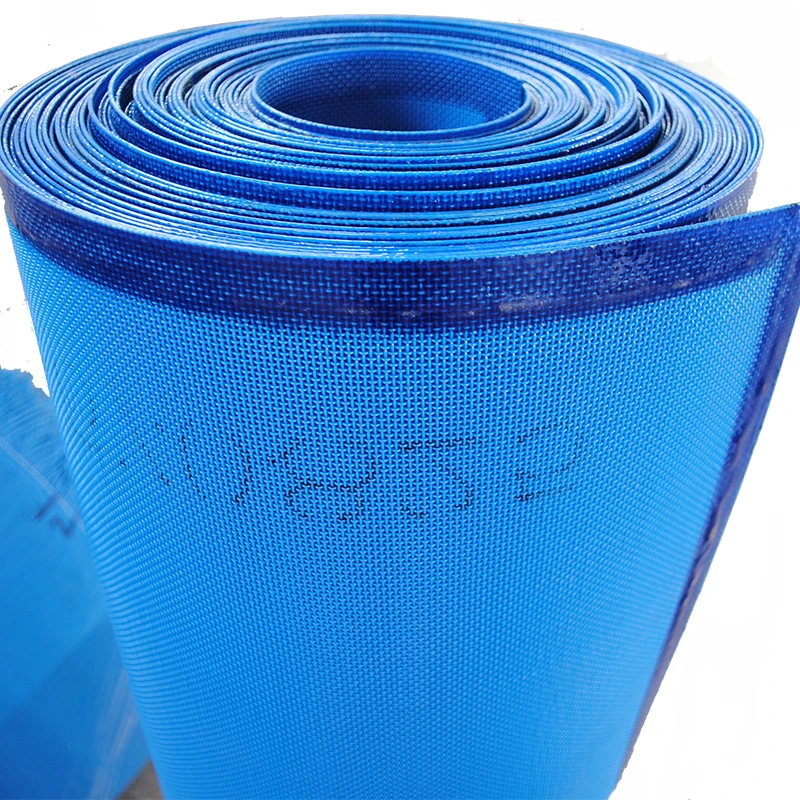

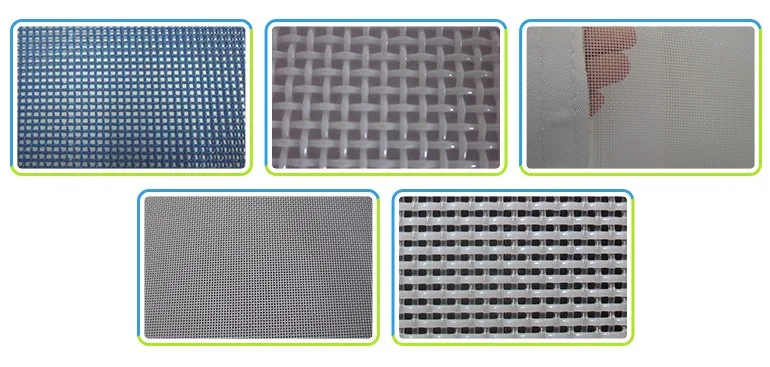

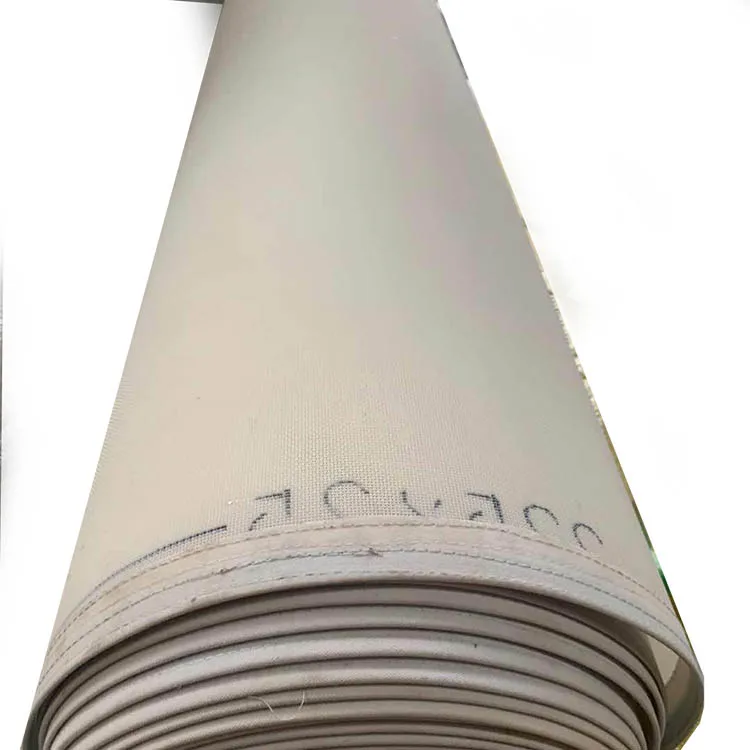

White color Mono filament  Plain Weave polyester conveyor Belt Mesh fabricWhite color Mono filament  Plain Weave polyester conveyor Belt Mesh fabricWhite color Mono filament  Plain Weave polyester conveyor Belt Mesh fabricWhite color Mono filament  Plain Weave polyester conveyor Belt Mesh fabric

Applicaiton

Polyester linear screen cloth belt mainly used for pulp and paper industry in the production the OARS with nets, fiberboard factory with a net, and coal mining equipment, food, medicine and other industries in the conveyor belt



Seam & Edge Type

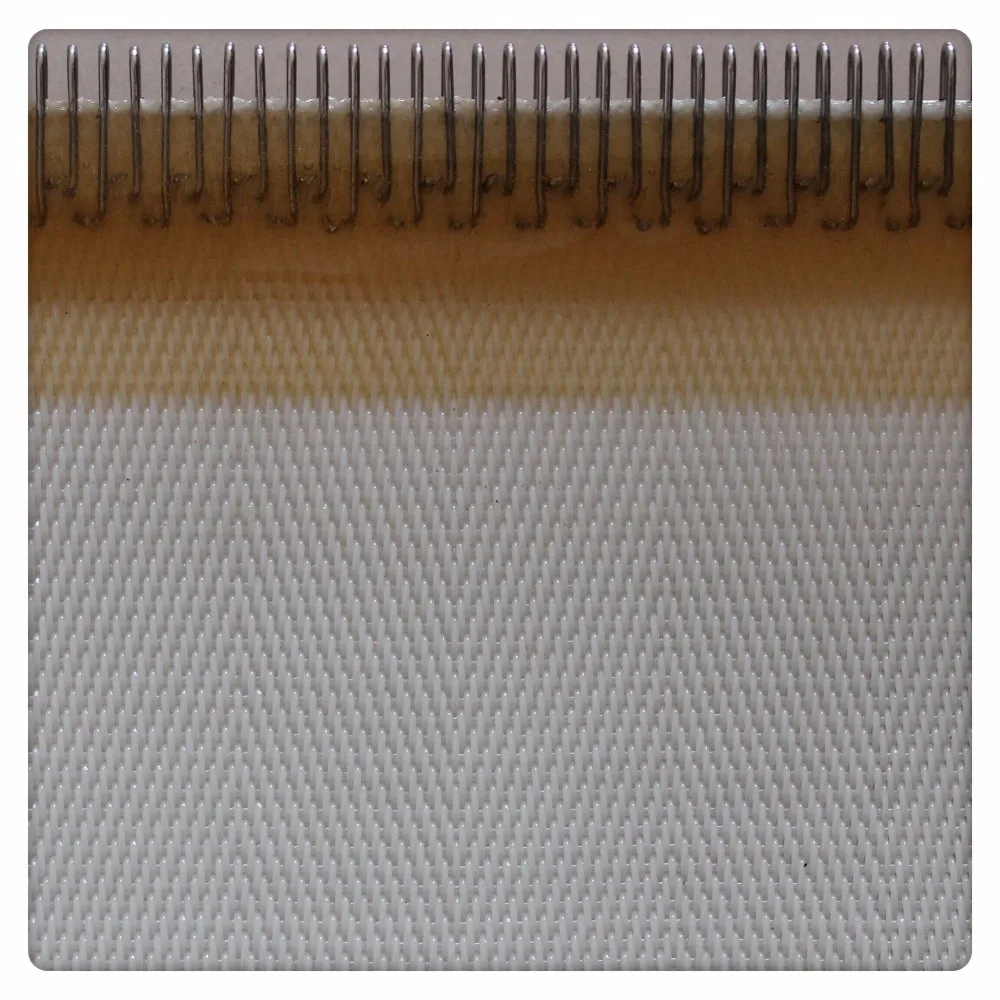

Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine 6

The steel-clip joint

Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine 7

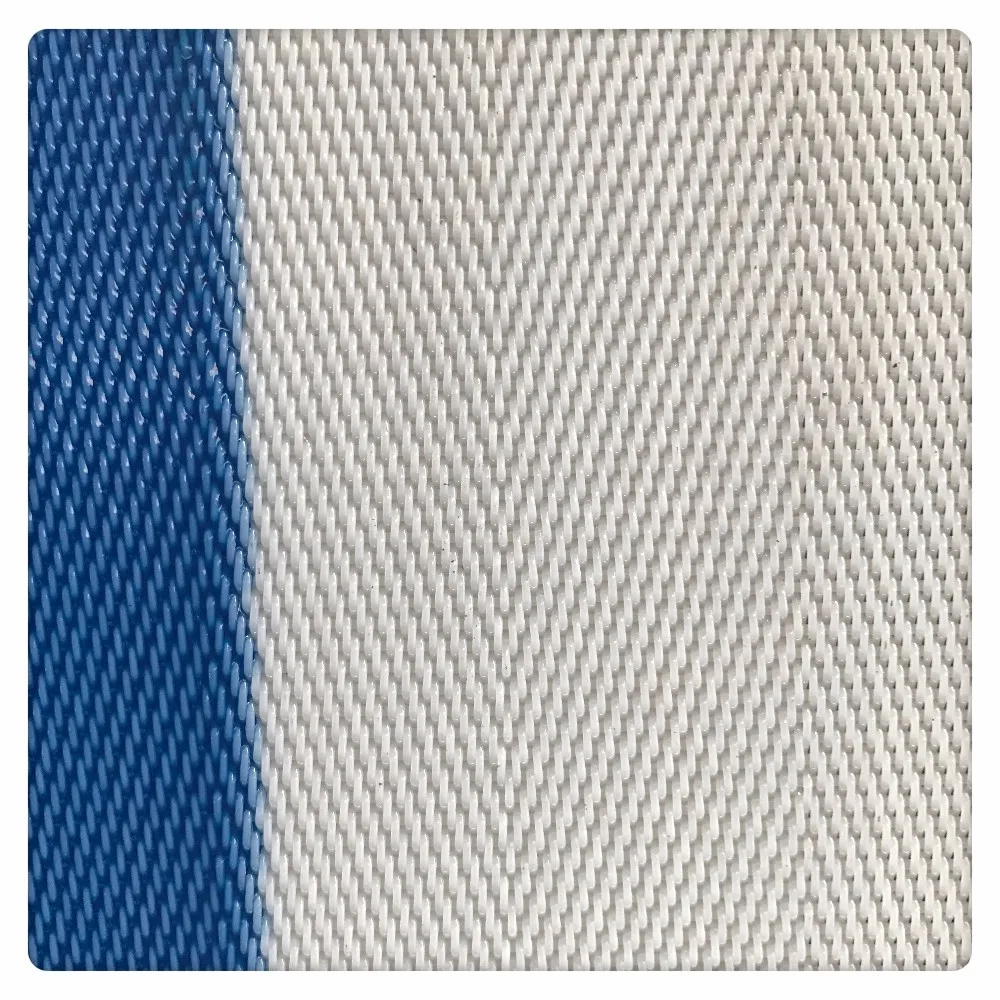

Blue glued

Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine 8

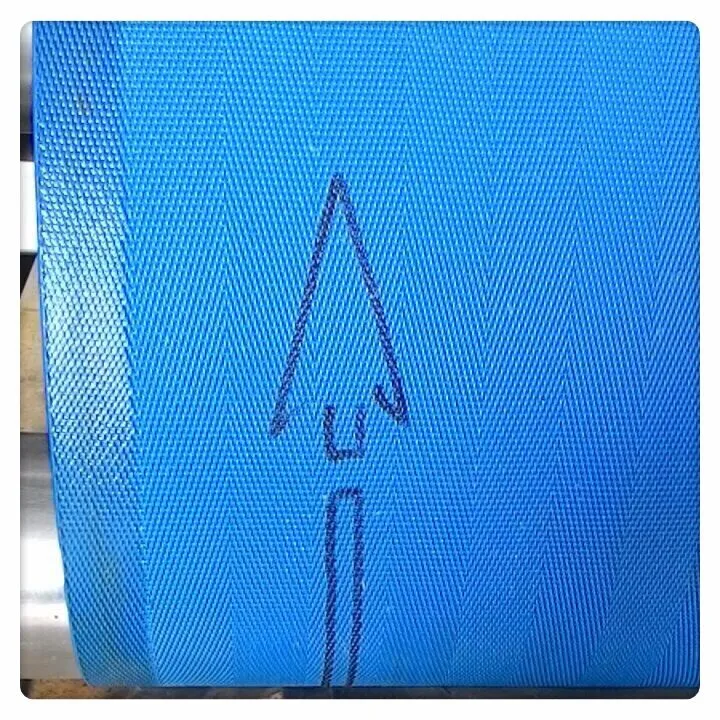

Blue glued

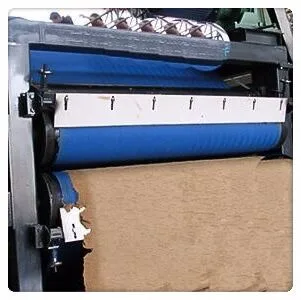

Applications
Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine 9
Mono Filament Plain Weave Polyester Mesh Conveyor Belt For Paper Machine 10




FAQ

1, What kind of filter bags can you provide?
Re, P84, Nomex, PPS, PTFE filter bags are the main products we producve, and PP, DT filter bags are also within our capacity.

2, About the specification, what do you get?
Re, Common specifications like 130x2.45m, 150x4m or 160x6m and we can also design a certain specification for you.
It depends on customers' requirements.You can get more specific information on our web.

3, Can you tell me what certifacation you have?
Re, Yeah, we have got ISO9001 and SGS certification.We pay much attention to our products' quality.

4. What's your payment terms?
Re, Usually in 30% TT in advance and 70% balance against B/L copy.

5, May I ask what kind of after-sale services can you provide?
Re, We can offer professional instructions during the installation and overservice installation service for you if necessarey.For the conplain and claim comes from the problem, we would take it seriously and give a resonable reply.

Our Service
a. We are professional manufacturer, and we can choose the suitable filter bags for you as per your working environment. If you have any problems in the use procedure, our professional team will always help you solve at any time.(Warranty:1-2 years)
b. If your dust filter bag is different from our filter bag size, please send us your drawing size and the material that you need, we also produce the filter bag.
